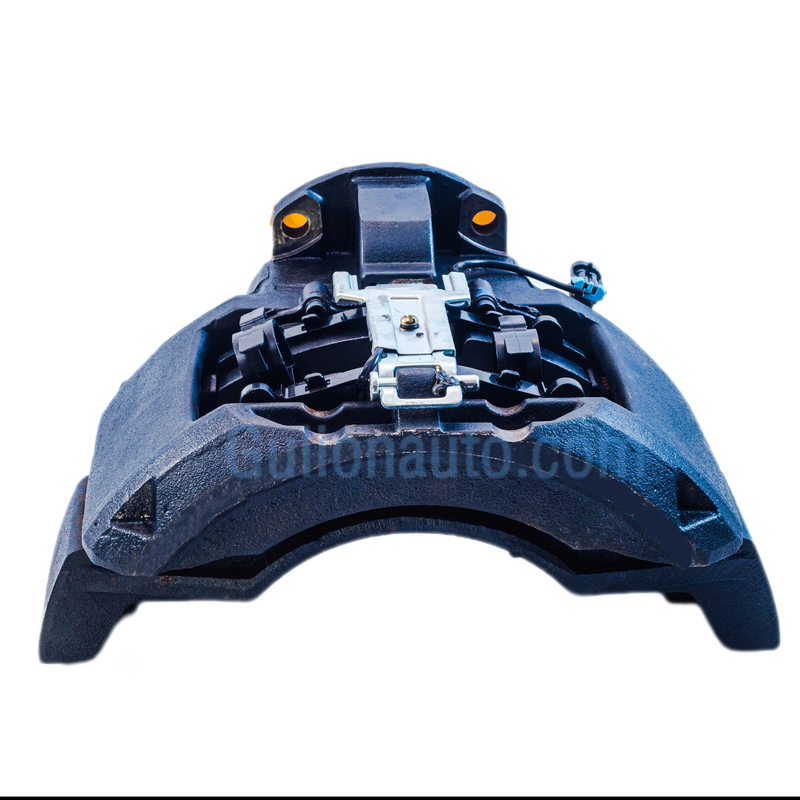

Gulion's air disc caliper has multiple types, meeting the demanding challenges and performance standards faced by heavy-duty tractors, trucks, and trailers.

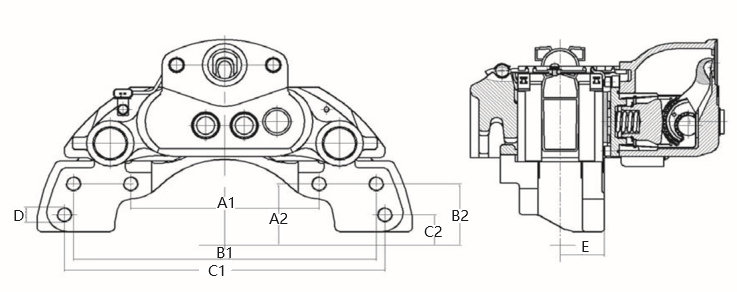

| No | Rim | Product Part No | Bracket Part No | Al | A2 | BI | B2 | CI | C2 | D | E |
| 1 | 20 | GL3501DA05 | GL3501DA05 | 266 | 67 | 341 | 67 | 360 | 30 | 6-M16X1. .5 | 55 |
| 2 | 20 | GL3501DA05B | GL3501DA05B | 310 | 67 | 366 | 35 | 4-M20X1.5 | 55 | ||
| 3 | 20 | GL3501DA05C | GL3501DA05C | 230 | 70 | 348 | 70 | 366 | 35 | 6-M16X1.5 | 55 |
| 4 | 20 | GL3501DA05D | GL3502DA05D | 210 | 80 | 330 | 75 | 370 | 38 | 6-M20X1.5 | 55 |
| 5 | 20 | GL3501DA05J | GL3501DA05A | 341 | 67 | 360 | 30 | 4-M18X1.5 | 55 | ||
| 6 | 22.5 | GL3501DA03 | GL3501DA02 | 210 | 80 | 378 | 80 | 400 | 40 | 6-M16X1.5 | 55 |
| 7 | 22.5 | GL3501DA03C | GL3501 DA02A | 235 | 80 | 378 | 80 | 400 | 40 | 6-M20X1.5 | 55 |
| 8 | 22.5 | GL3501DA03F | GL3501DA03F | 210 | 80 | 378 | 80 | 400 | 40 | 6-M20X1.5 | 55 |
| 9 | 22.5 | GL3501DA03E | GL3501DA03E | 220 | 75 | 378 | 75 | 400 | 35 | 6-M20X1.5 | 55 |
| 10 | 22.5 | GL3502DA03C | GL3501DR01 | 326 | 40 | 406 | 49 | 4-M20X1.5 | 55 |

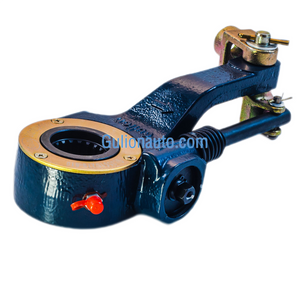

Gulion has more than 300 automatic slack adjusters, and we also produce Air disc brakes and manufacture worm gears and many other commercial vehicle parts. We supply many well-known Chinese manufacturers, such as Dongfeng Commercial Vehicles, Zoomlion Heavy Industry, JAC Motors, etc. Our quality stands out among many suppliers. Our products cover most truck, trailer, and bus applications. If you have any questions or concerns, please send them to our technical department.
Gulion's air disc caliper has multiple types, meeting the demanding challenges and performance standards faced by heavy-duty tractors, trucks, and trailers.
| No | Rim | Product Part No | Bracket Part No | Al | A2 | BI | B2 | CI | C2 | D | E |
| 1 | 20 | GL3501DA05 | GL3501DA05 | 266 | 67 | 341 | 67 | 360 | 30 | 6-M16X1. .5 | 55 |
| 2 | 20 | GL3501DA05B | GL3501DA05B | 310 | 67 | 366 | 35 | 4-M20X1.5 | 55 | ||
| 3 | 20 | GL3501DA05C | GL3501DA05C | 230 | 70 | 348 | 70 | 366 | 35 | 6-M16X1.5 | 55 |
| 4 | 20 | GL3501DA05D | GL3502DA05D | 210 | 80 | 330 | 75 | 370 | 38 | 6-M20X1.5 | 55 |
| 5 | 20 | GL3501DA05J | GL3501DA05A | 341 | 67 | 360 | 30 | 4-M18X1.5 | 55 | ||
| 6 | 22.5 | GL3501DA03 | GL3501DA02 | 210 | 80 | 378 | 80 | 400 | 40 | 6-M16X1.5 | 55 |
| 7 | 22.5 | GL3501DA03C | GL3501 DA02A | 235 | 80 | 378 | 80 | 400 | 40 | 6-M20X1.5 | 55 |
| 8 | 22.5 | GL3501DA03F | GL3501DA03F | 210 | 80 | 378 | 80 | 400 | 40 | 6-M20X1.5 | 55 |
| 9 | 22.5 | GL3501DA03E | GL3501DA03E | 220 | 75 | 378 | 75 | 400 | 35 | 6-M20X1.5 | 55 |
| 10 | 22.5 | GL3502DA03C | GL3501DR01 | 326 | 40 | 406 | 49 | 4-M20X1.5 | 55 |
Gulion has more than 300 automatic slack adjusters, and we also produce Air disc brakes and manufacture worm gears and many other commercial vehicle parts. We supply many well-known Chinese manufacturers, such as Dongfeng Commercial Vehicles, Zoomlion Heavy Industry, JAC Motors, etc. Our quality stands out among many suppliers. Our products cover most truck, trailer, and bus applications. If you have any questions or concerns, please send them to our technical department.
