Have you ever wondered what makes the wheels of a heavy-duty truck turn smoothly, or how a helicopter's rotor maintains precise control? The answer often lies within a marvel of mechanical engineering: the planetary gear system, and at its very heart, the transmission sun gear. This central component is indispensable for efficient power transmission across countless industries, enabling everything from seamless gear changes in your car to the powerful operations of industrial machinery.
A transmission sun gear is an integral component of planetary gear systems, widely used across various industries for efficient power transmission. These gears play a crucial role in reducing speed, increasing torque, and ensuring smooth mechanical operations. The reliability of any planetary system hinges on precision engineering, especially when it comes to the central sun gear. In this comprehensive guide, we will explore everything you need to know about transmission sun gears, including their manufacturing process, diverse applications, and the critical importance of precision in their production.

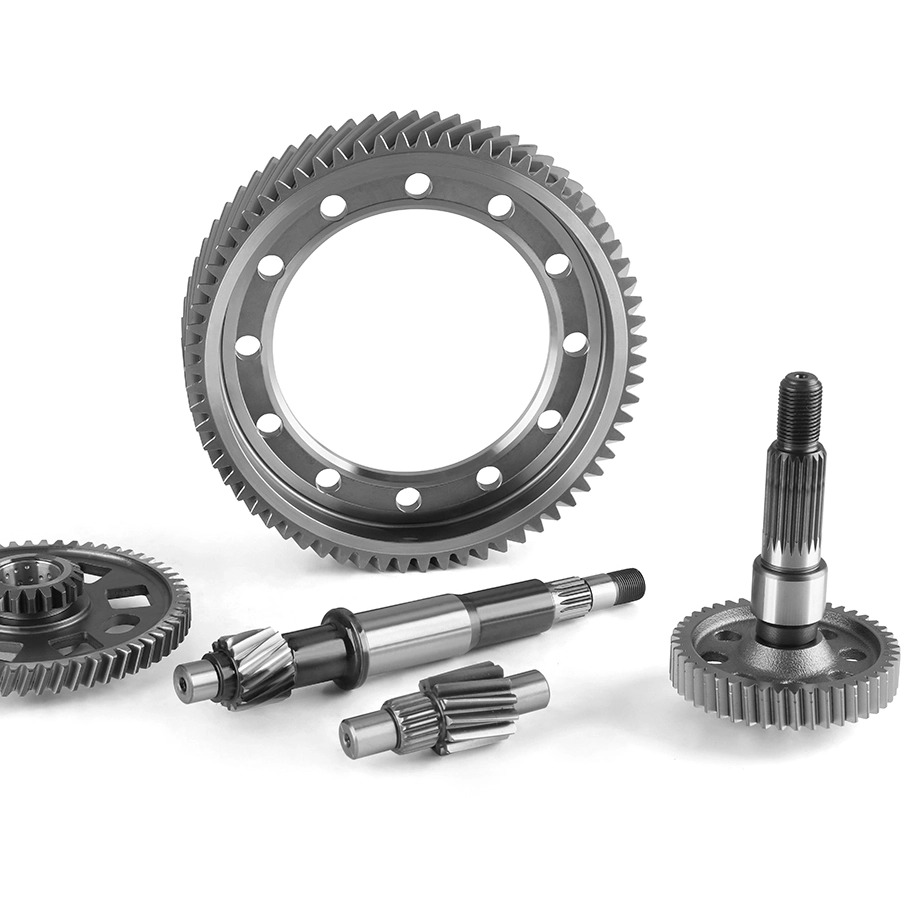

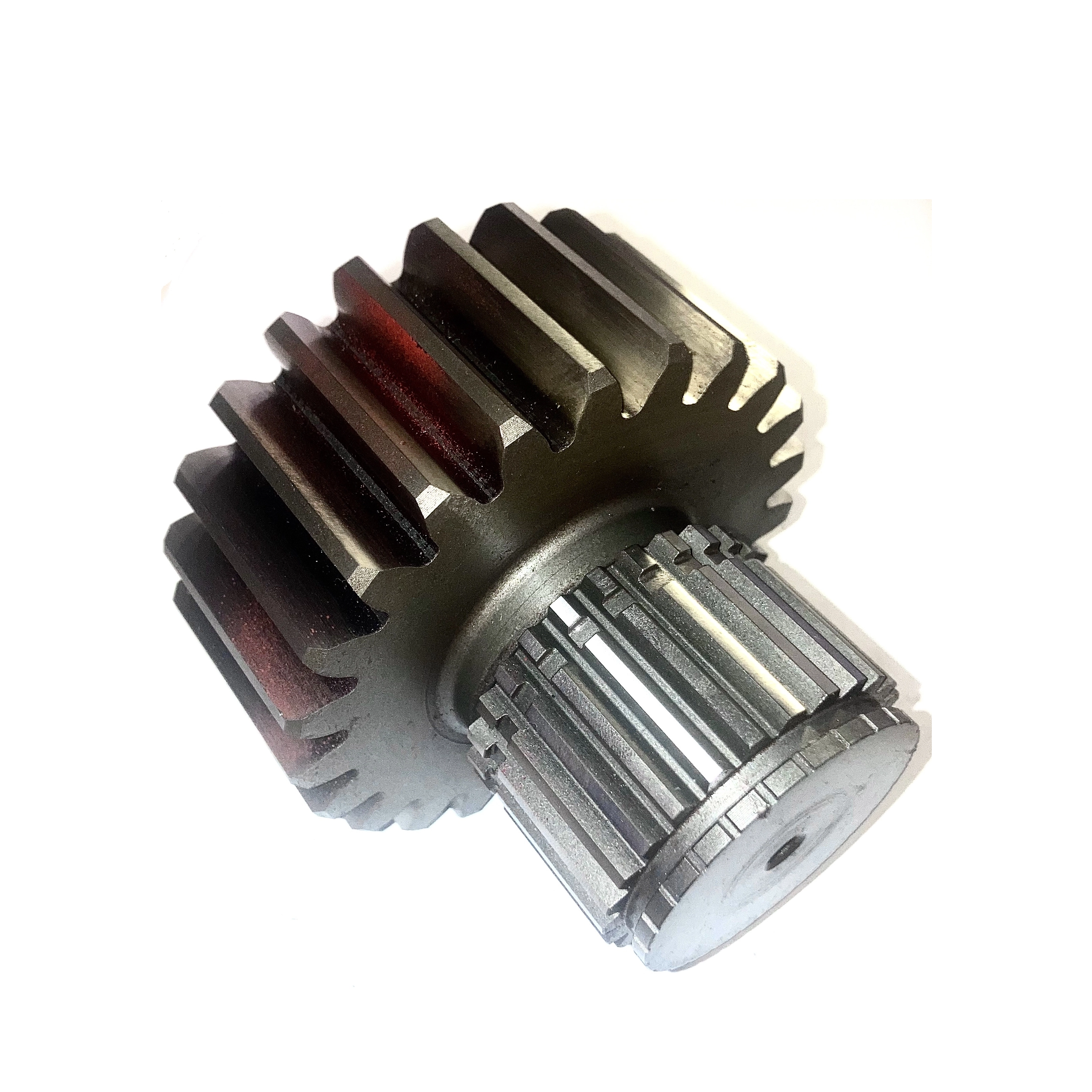

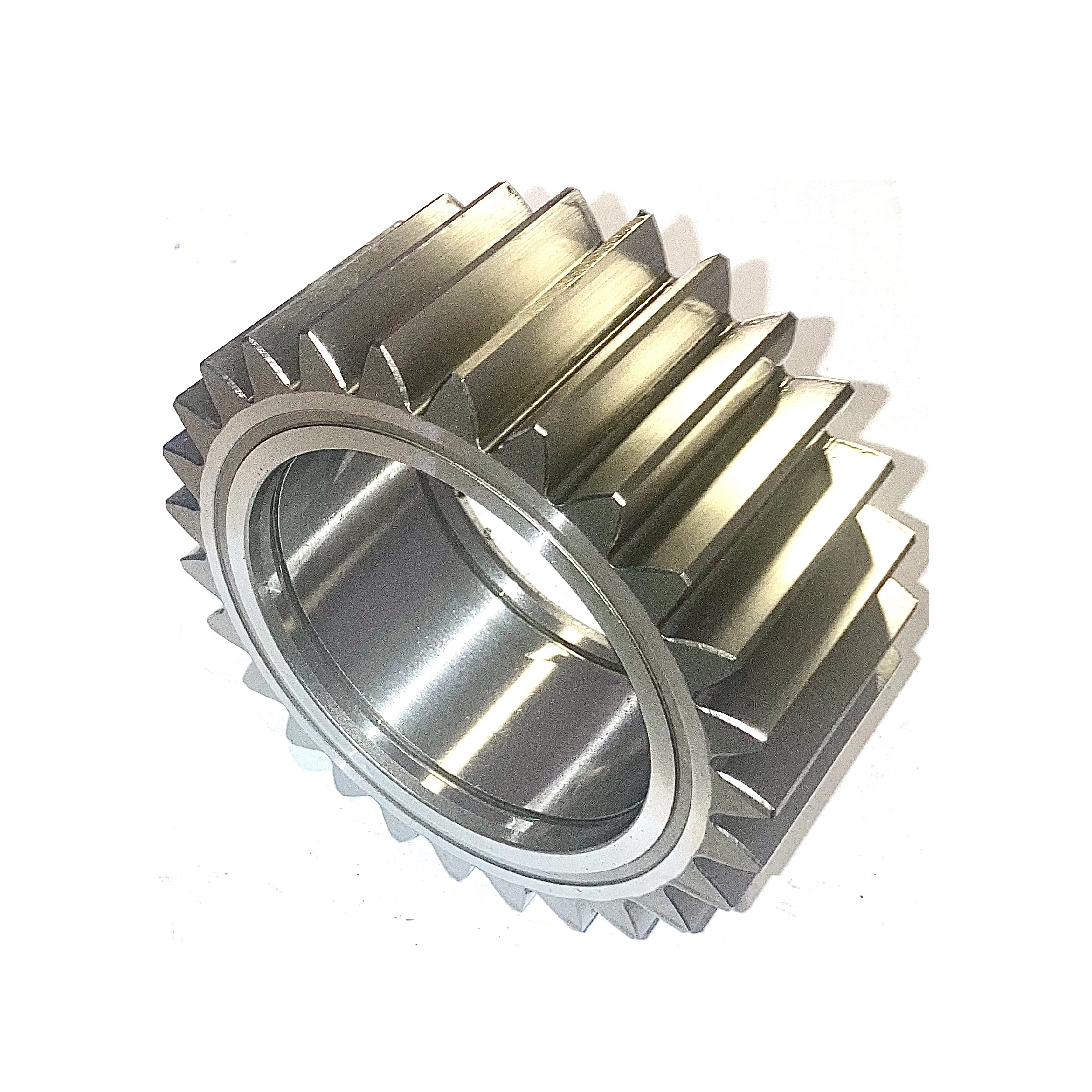

So, what exactly is a sun gear in the context of a planetary system? A sun gear is the central or internal gear in a planetary system surrounded by planet gears that orbit around it. It acts as the input and driver of the set. In essence, it's the core around which the entire planetary gearing mechanism revolves. Gears, in general, play an important role in transferring power and controlling speed ratios in a mechanical system. Due to their capacity to distribute load effectively, transmission sun gears and the systems they belong to play a crucial role in intricate machinery. When the sun gear receives input power, it transmits that power to the surrounding planet gears, initiating the entire rotational process.
To truly understand the transmission sun gear, we must first grasp the full picture of the planetary gear system it belongs to. A planetary gear is a type of epicyclic gear system comprised of spur gears. This unique arrangement enhances torque transmission and efficiency.
Here's a detailed breakdown of the key components:
Sun Gear: This is the central gear, located at the center of the assembly, and it meshes with the teeth of the planet gears. It receives the input for the gear set and is known as the main gear in a planetary gear set.
Planet Gears: These "driven" gears rotate around the sun gear within a planetary gearbox. They control the speed of the transmission of power.
Ring Gear: The outer ring of a planetary gear system is known as the ring gear. It contains teeth on its internal circumference and is smooth on its outside edge. The planet gears engage with this ring gear from the inside, making an internal spur gear design.
Carrier: The carrier holds the planet gears in place and rotates with respect to the sun gear, providing support and delivering the output torque. It has a shaft for each of the planet gears that surround the sun gear and are surrounded by the ring gear.
This unique arrangement allows planetary gearboxes to achieve high efficiency and precision by distributing torque through multiple gears. Because the planet gears are evenly distributed around the sun gear, planetary gear trains are known to be extremely rugged designs.
The creation of high-quality transmission sun gears demands precision engineering, state-of-the-art technology, and high-grade materials. The manufacturing process is meticulous, ensuring that each sun gear meets stringent industry demands for performance and longevity.
Here are the most important manufacturing processes involved:
Material Selection: For exceptional longevity, manufacturers employ high-grade alloy steel or case-hardened materials. Heat-treated metals are crucial as they significantly improve wear resistance and durability, directly impacting the lifespan of the transmission sun gear.
Gear Cutting and Shaping: Precision in gear tooth formation is paramount, and this is guaranteed through the use of CNC machines. Common methods frequently utilized include hobbing, shaping, and broaching. These processes ensure the intricate tooth profiles necessary for smooth and efficient power transfer.
Heat Treatment & Surface Finishing: To increase strength and robustness, hardening treatments like carburizing or induction hardening are applied. Furthermore, surface finishes are essential as they enhance the wear life of the transmission sun gear and decrease friction during operation.
Quality Inspection: High-precision measuring tools are employed to inspect dimensions for accuracy. Non-destructive inspection techniques are also vital to guarantee flaw-free gears, ensuring the reliability of every transmission sun gear before it reaches the market.
Transmission sun gears have universal applications across a number of industries where accuracy and strength are paramount. Their ability to efficiently transmit power and manage torque makes them indispensable.
Some prominent applications include:
Automotive Industry: Planetary gear systems are utilized in automatic transmissions for seamless gear changes. Sun gears are also employed in electric vehicles for optimal power transmission, contributing to their efficiency.
Aerospace & Aviation: Helicopter rotor systems extensively use planetary gear mechanisms for precise torque control. Aircraft landing gear systems also depend on sun gears for controlled motion during crucial operations.
Industrial Machinery: Heavy machinery such as cranes and conveyor systems leverage sun gears for torque multiplication, enabling them to move massive loads with ease. Robotic arms in automated plants utilize planetary gears, with the sun gear at its core, for highly controlled and precise movements. Beyond this, planetary gear designs are used in a wide range of industrial applications, including forestry equipment like log decks, debarking equipment, sawing applications, pulp washers, and vacuum filters. They are also vital in sugar cane applications, phosphate industries, steel mills, and asphalt and cement conveyors, mixers, and drums.
Wind Energy Sector: Wind turbine gearboxes heavily rely on planetary gear systems, with sun gears being a key component in the energy conversion process, helping to harness wind power efficiently.
Agriculture Equipment: Tractors and harvesting equipment employ planetary gear mechanisms to provide smooth power transmission, essential for their demanding tasks in the field.
Other Applications: Even a seemingly simple application like a bicycle uses planetary gearing to power the shifting mechanism. They can also be used as a powertrain between internal combustion engines or connected to electric motors.
An efficiently designed transmission sun gear significantly improves the efficiency and dependability of any mechanical system it's a part of. Precision in manufacturing isn't just a buzzword; it translates directly into superior performance and longevity.
The advantages of precision-produced transmission sun gears are clear:
Smooth Operation: Precision manufacturing minimizes friction and optimizes power transmission, leading to remarkably smooth operation.
High Load Capacity: Precisely engineered transmission sun gears have the capacity to bear heavy loads without excessive wear, making them ideal for demanding applications.
Longer Lifespan: The use of robust materials combined with a fine surface finish directly contributes to an extended lifespan for the sun gear, reducing the need for frequent replacements.
Energy Efficiency: Well-designed gears reduce power waste within equipment, leading to greater energy efficiency and lower operational costs.
While the transmission sun gear is central, it operates within various types of planetary gearboxes, each suited for different applications. A planetary gearbox is a compact and efficient gear system.
Here are some common types:
Single-Stage Planetary Gearbox: This basic configuration typically includes one sun gear, three planet gears, a carrier, and a ring gear. You can modify the speed and torque of the output by altering the size of the gears and the number of teeth.
Multi-Stage Planetary Gearbox: For applications requiring specific speed and torque outputs, multi-stage planetary gear sets are used, which have two or more planetary gears with the same architecture as single-stage sets.
In-Line Planetary Gearbox: In this type, the input and output shafts are in a straight line, containing a single sun gear and multiple planet gears enclosed within a ring gear.
Offset Planetary Gearbox: Also known as parallel shaft planetary gears, these have the input and output shafts placed in an offset or parallel position.
Right-Angle Planetary Gearbox: Input and output shafts are arranged at right angles to each other. The rotation of the planet gears transfers power to a right-angle bevel gear set connected to the output shaft.
Specialized Types:
Harmonic Drive Planetary Gearbox: These are also known as strain wave gearboxes and wave generator gearboxes. They offer zero backlash, high precision, and high torque density.
Simpson Planetary Gearbox: This design features a single sun gear and two or three sets of planetary carriers connected in a series. It commonly provides a structure with three forward gears, one reverse gear, and a neutral position.
Ravigneaux Planetary Gearbox: An advancement of the Simpson type, this gear set includes two sun gears, two ring gears, and two sets of planet gears on a single carrier.
Differential Planetary Gearbox: This set has a large ring gear, a carrier, two planet gears, and a sun gear. The ring gear is connected to one wheel's shaft, while the sun gear is attached to the other, allowing for changes in drive shaft rotation to drive the wheels.
Planetary gear sets can also include either spur or helical gears. The main difference lies in their helix angle: spur gears have a zero-helix angle, while helical gears have a helix angle ranging from 10 to 30 degrees. This tooth design influences where the teeth make contact, which then determines the available power, torque, and speed potential of the gears.
Planetary gearing is used in rugged applications due to the even distribution of the three planet gears around the sun gear. They are known for their robustness and power density, meaning they can handle higher torques and reductions in a smaller, more compact package.
Here's a breakdown of the benefits and considerations:
Advantages:
High Torque Density: Planetary gearboxes can transmit high torque within a compact structure.
Efficiency: They exhibit low energy loss due to balanced power distribution.
Durability: Capable of handling heavy loads and long operating hours, they are more robust than other gearing.
Versatility: They are suitable for various industrial and automation applications and are more versatile than other gears. They allow for easy ratio changes, enabling users to simply change the ratio within the planetary design without buying a whole new product.
Compact Design: They save space while delivering superior performance.
Smooth Operation: Planetary gears reduce vibration and noise.
High Shock Loads: They can handle higher shock loads and higher overhung loads.
Disadvantages:
Noise Level: Planetary gearboxes can sometimes have a higher noise level.
Load Sharing Accuracy: Load sharing may not be optimal if the gearbox is not manufactured with high accuracy.
Lubrication Requirement: They must be grease-lubricated to prevent wear.
Cost: The cost can be higher for models designed for low backlash and extended longevity.
The transmission sun gear manufacturing industry is rapidly evolving, integrating advanced technology and eco-friendly practices to meet future demands. These trends promise even more efficient, durable, and sustainable components.
Key trends shaping the future include:
Implementation of Smart Manufacturing: We are seeing the rise of AI-driven systems for precision machining and quality control, leading to higher accuracy and reduced waste in transmission sun gear production.
Utilization of Lightweight and High-Strength Materials: The adoption of composite materials is increasing, allowing for the creation of lighter yet stronger transmission sun gears that offer increased performance and energy efficiency.
3D Printing and Additive Manufacturing: These technologies enable quick prototyping and effective mass production of complex gear structures, revolutionizing how transmission sun gears are designed and manufactured.
Sustainability and Eco-Friendly Production: The industry is moving towards more energy-efficient production techniques to decrease the environmental footprint, ensuring that transmission sun gears are produced responsibly.
Transmission sun gears are a very important unit in planetary gear systems, indispensable for different industrial processes. They are the core of efficient power transmission, enabling mechanical systems to operate smoothly, reliably, and with high precision. An efficient transmission sun gear manufacturer provides durable and effective gears that contribute towards seamless machinery operations. By understanding their fundamental role, complex manufacturing, diverse applications, and the importance of choosing a trusted supplier like Gulion, businesses can significantly improve the efficiency and longevity of their equipment, paving the way for long-term success.
Q1: What is the primary function of a transmission sun gear in a vehicle?
A1: The primary function of a transmission sun gear in a vehicle is to act as the central input gear in a planetary gear system, transferring power from the engine to the planet gears, which then distribute it to the rest of the transmission for speed reduction and torque increase, enabling smooth gear changes.
Q2: How does a sun gear differ from a planet gear?
A2: A sun gear is the central, often input, gear around which multiple planet gears orbit. Planet gears are the "driven" gears that rotate around the sun gear while also meshing with an outer ring gear.
Q3: What materials are typically used to manufacture high-quality sun gears?
A3: High-quality transmission sun gears are typically manufactured using high-grade alloy steel or case-hardened materials. These materials often undergo heat treatments to enhance their wear resistance and durability.
Q4: Can a transmission sun gear be customized for specific industrial applications?
A4: Yes, reputable manufacturers like Gulion offer customization capabilities, allowing for tailor-made transmission sun gears and solutions to meet specific industrial requirements and ensure optimal performance in diverse applications.
Q5: What are the key advantages of using a planetary gear system with a sun gear compared to other gear types?
A5: Planetary gear systems, featuring a central transmission sun gear, offer several key advantages, including high torque density within a compact design, excellent efficiency due to balanced power distribution, superior durability for heavy loads and shock, and versatility for various industrial applications.
Q6: How does the quality of a sun gear impact the overall performance of a mechanical system?
A6: The quality of a transmission sun gear directly impacts the overall performance by ensuring smooth operation with minimized friction, high load capacity without excessive wear, a longer lifespan for the entire system, and improved energy efficiency by reducing power waste.
