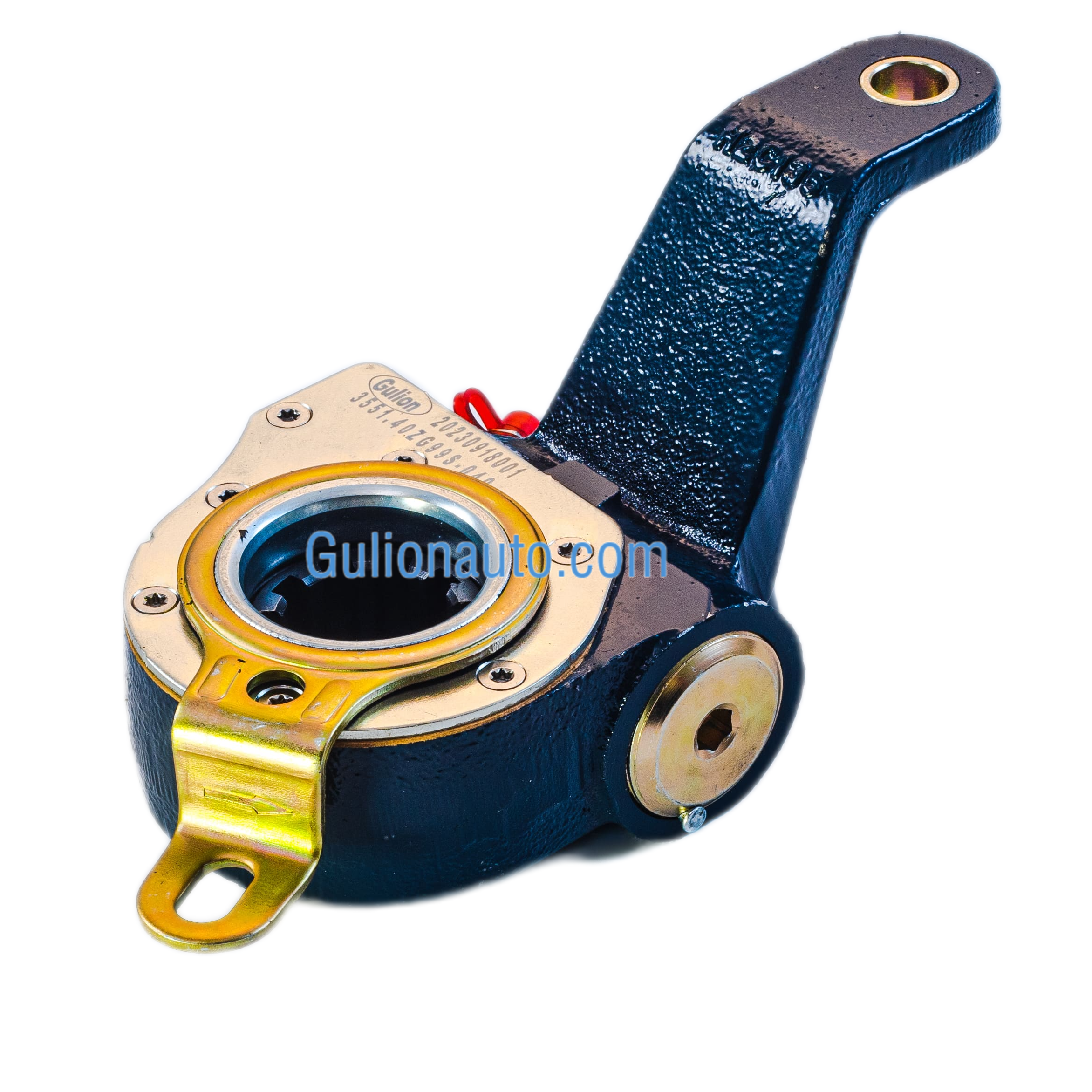

10 Spline 5.5'' Auto Brake Adjuster Replaces Meritor

  • For Tractor Application
  • Premium cast iron
  • High alloy steel gears
Availability:
Quantity:
  • 3551.40ZG99S.040

Product Type

Automatic

Spline Diameter-Teeth

1.512 IN-10 Spline

Arm Bushing(s)

None

Arm Length

5.315 IN

Arm Offset

Yes

Brand

Gulion

Pallet Quantity100/200/300
Service

OEM & ODM

Warranty

One year/100,000 KM


The automatic brake clearance adjuster for automobiles is a new product that replaces the ordinary mechanical slack adjuster used in current automobiles. It can timely and automatically compensate for the increased clearance between the brake drum and the brake shoe friction pad caused by the wear of the brake shoe friction pad. During the driving process of the car, due to long-term use and multiple braking, there will be excessive clearance between the brake shoe friction pad and the brake drum due to the wear of the brake shoe friction pad, which will gradually cause a series of hidden dangers that are not conducive to safe driving, such as vehicle braking weakness and brake deviation. Using the Gulion automatic clearance adjuster has multiple advantages. First, it reduces the frequency of manual adjustment of the brake clearance, thereby reducing maintenance costs and time. Automatically maintaining the optimal clearance minimizes the wear of the brake pads and brake drums and extends their service life. It also reduces the vehicle downtime caused by brake system failure or adjustment, significantly improving the overall operating efficiency of the vehicle. In addition, many Gulion automatic clearance adjusters are designed to meet strict industry standards and regulations to ensure the compliance and reliability of the car. During production, Gulion uses environmentally friendly packaging materials and introduces energy-saving production processes to reduce pollution and carbon emissions in the manufacturing process, reduce energy consumption, and improve production efficiency.
